Anti-theft screws ISO7380T
Torx machine screw

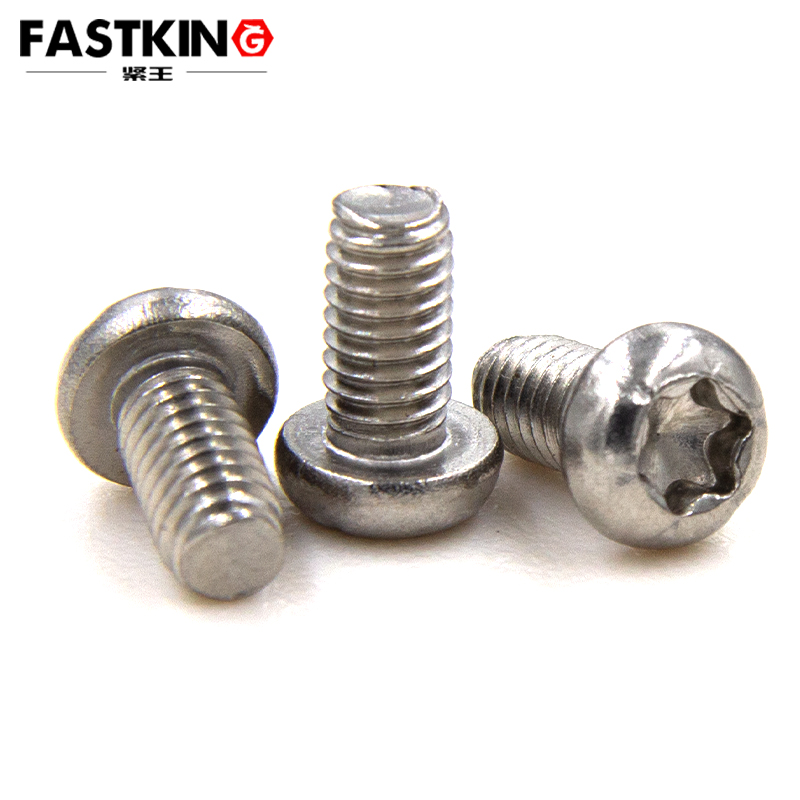

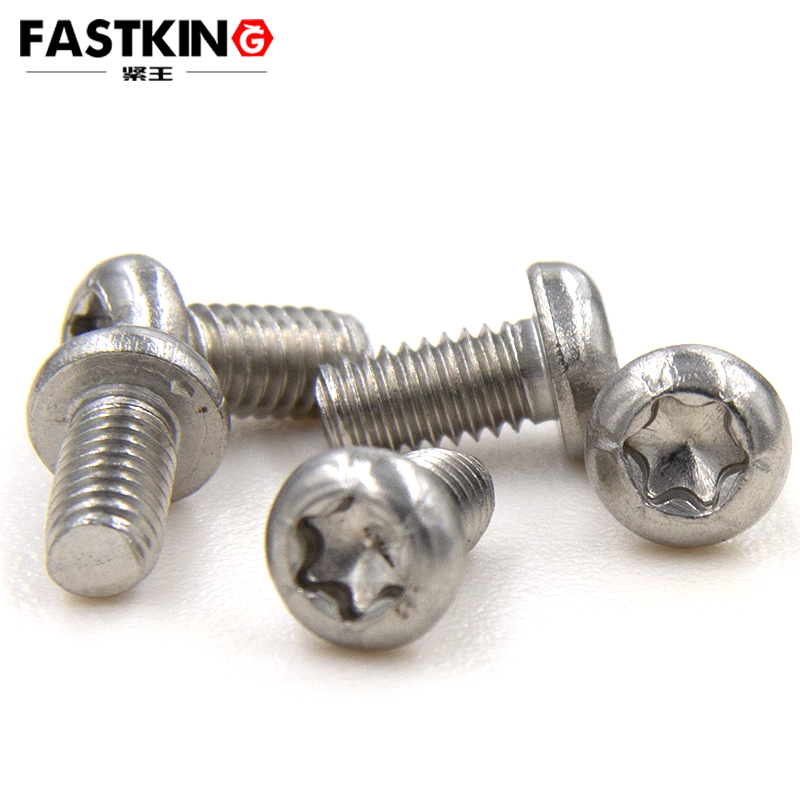

316 inner plum round head anti-theft screws ISO7380T
- Description：Pan-head hexagon socket anti-theft screws (manufactured in accordance with the ISO7380T standard, commonly referred to as "ISO7380T hexagon socket pan-head anti-theft machine screws") rely on the comb
In terms of material performance, 316 stainless steel is the core competitive advantage of this screw. Compared with conventional 304 stainless steel (containing 18% chromium and 8% nickel), 316 stainless steel is additionally alloyed with 2%-3% molybdenum, forming a denser passive film. This enhances its pitting and crevice corrosion resistance by 3-5 times. In neutral salt spray testing, the corrosion rate of 316 stainless steel is only 1/10 that of 304, with a salt spray life of over 1500 hours (compared to 720 hours for 304 stainless steel). In a 5% concentration sulfuric acid solution, the corrosion resistance duration of 316 is 4 times that of 304, making it particularly suitable for high-corrosion environments such as chemical workshops and coastal areas. Furthermore, 316 stainless steel exhibits superior high-temperature resistance, maintaining stable performance within the range of -196℃ to 450℃—far exceeding the -270℃ to 300℃ range of 304 stainless steel—enabling it to meet fastening requirements in high-temperature working conditions (e.g., industrial ovens, exhaust pipelines).
The compatibility with the ISO7380T standard further maximizes the advantages of 316 stainless steel. As the core standard for hexagon socket pan-head anti-theft screws, ISO7380T explicitly requires a "hexagon socket with a central pin + pan-head structure": the central cylindrical pin in the hexagon socket (e.g., 0.8mm±0.03mm in diameter for M5 specification) must be compatible with dedicated wrenches with a hole, achieving an industry-high anti-disassembly level; the pan-head design (9.0-9.7mm in diameter and 2.4-2.8mm in height for M5 specification) ensures low surface protrusion, making it suitable for exposed scenarios with high appearance requirements. 316 stainless steel boasts excellent ductility and machinability, allowing for precise compliance with the dimensional tolerances specified in the standard. For instance, in socket machining, the tolerance compliance rate of the opposite side distance of the hexagon socket (s=3.0mm±0.05mm for M5 specification) in 316 stainless steel is 20% higher than that in ordinary carbon steel. Additionally, the matching degree between the central pin and socket depth (pin height = socket depth of 1.5-1.8mm) is more accurate, avoiding machining deviations caused by excessively high material hardness and ensuring stable anti-theft performance.
From the perspective of application scenarios, 316 hexagon socket pan-head anti-theft screws (ISO7380T) are distinctly suited for fields requiring both "high corrosion resistance + anti-disassembly". In marine engineering, they are used for fixing ship deck railings and the casings of seawater desalination equipment—316 stainless steel resists corrosion from seawater salts, preventing railing loosening due to screw rust, while the ISO7380T anti-theft structure deters malicious disassembly by passers-by, ensuring maritime operation safety. In the chemical industry, they secure observation windows of acid-base storage tanks and control panels of reaction kettles—316 stainless steel withstands corrosion from chemical media, and the hexagon socket with a central pin design prevents improper operation by non-professionals, reducing the risk of chemical leaks. In high-end outdoor facilities (e.g., smart guide screens in coastal scenic areas, outdoor distribution boxes of nuclear power plants), 316 stainless steel copes with high-humidity and high-salt environments, and the anti-theft structure protects internal equipment components from damage, ensuring long-term stable operation of the facilities.
Compared with similar products, 316 hexagon socket pan-head anti-theft screws (ISO7380T) have more targeted advantages. When compared to ISO7380T screws made of 304 stainless steel, their service life in coastal areas can be extended from 3-5 years to 8-10 years, reducing long-term maintenance costs. When compared to ordinary 316 hexagon socket anti-theft screws (ISO4762T), their pan-head design features lower protrusion (2.4-2.8mm in height for M5 specification vs. 3.0-3.4mm for ISO4762T), making them more suitable for exposed scenarios with high appearance requirements (e.g., fastening casings of high-end medical equipment). However, their cost is approximately 50% higher than that of 304 stainless steel ISO7380T screws, so rational selection based on the corrosion level of the scenario is essential. For ordinary outdoor scenarios without coastal or chemical exposure (e.g., urban street lamps), 304 stainless steel suffices; for high-corrosion scenarios, 316 stainless steel should be prioritized to avoid safety accidents caused by screw rust.
In selection and installation, attention must be paid to the characteristics of 316 stainless steel and its compatibility with the ISO7380T standard. During selection, specifications should be determined based on corrosion levels: for marine environments, M4 or larger specifications (e.g., M5×16) are recommended to ensure a thread engagement depth of ≥8mm, enhancing pull-out resistance; for chemical environments, 316 stainless steel washers should be used to prevent crevice corrosion between the screw and the workpiece. During installation, dedicated hexagon wrenches with a hole must be used (e.g., a 3mm hole wrench for M5 specification) to ensure the central pin is fully inserted into the wrench hole, avoiding socket damage due to "slippage" (tool slipping out of the socket). Meanwhile, fastening torque should be controlled (6-8N·m recommended for M5 specification) to prevent thread deformation of 316 stainless steel caused by excessive torque—316 stainless steel has a slightly lower yield strength than 304 (approximately 205MPa vs. 215MPa), so over-tightening can easily lead to thread damage.
The emergence of 316 hexagon socket pan-head anti-theft screws (ISO7380T) fills the gap in fasteners for "high-corrosion environments + anti-disassembly requirements". By deeply combining the weather resistance of 316 stainless steel with the anti-theft performance of ISO7380T, it not only solves the problem of rust-induced failure of ordinary screws in harsh environments but also meets the anti-disassembly needs of public facilities and high-end equipment. With the development of new energy, marine engineering, and other industries, such fasteners featuring "material upgrading + standard compatibility" will become standard in high-demand scenarios, providing key support for the long-term stable operation of equipment.
